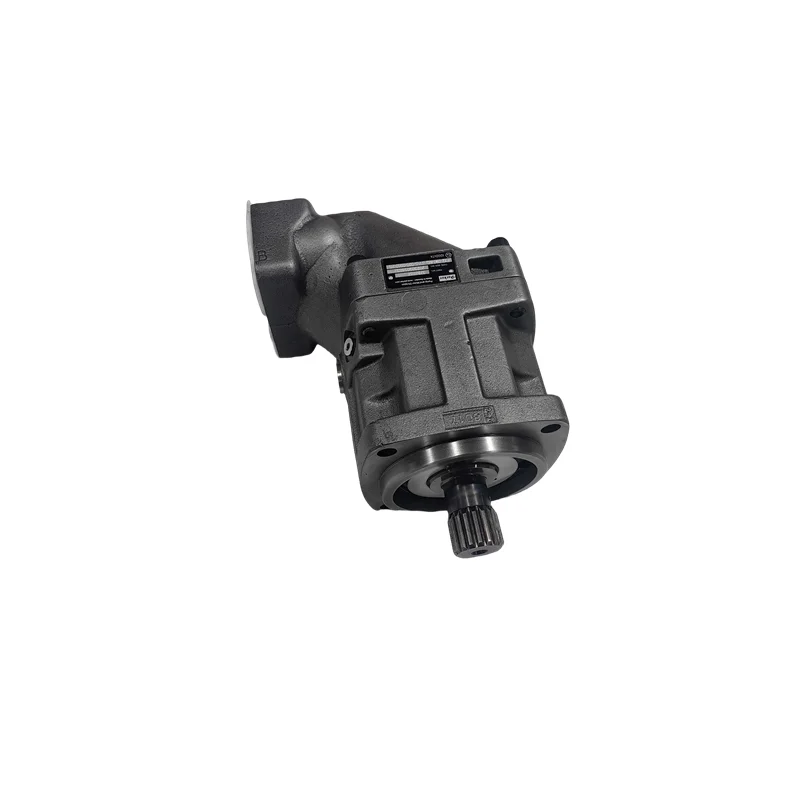

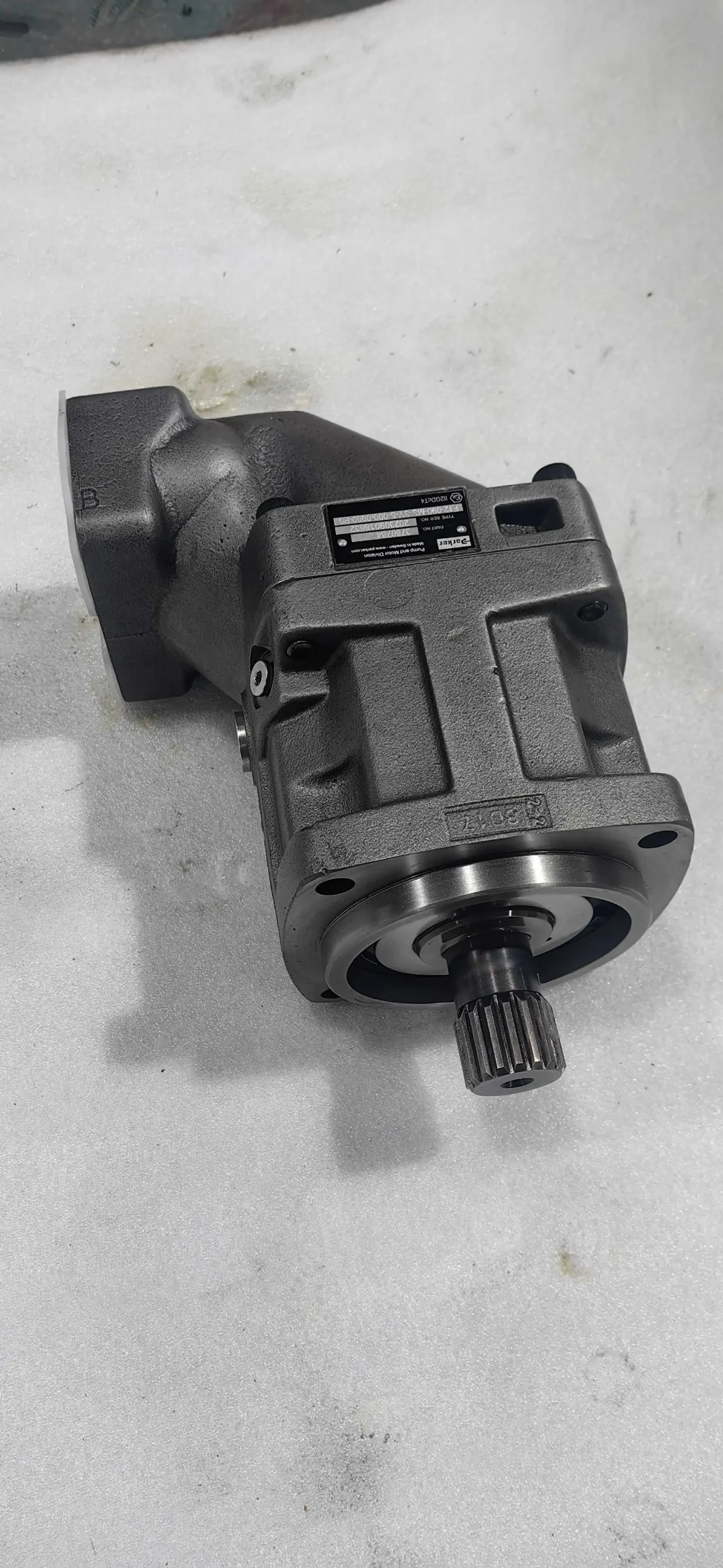

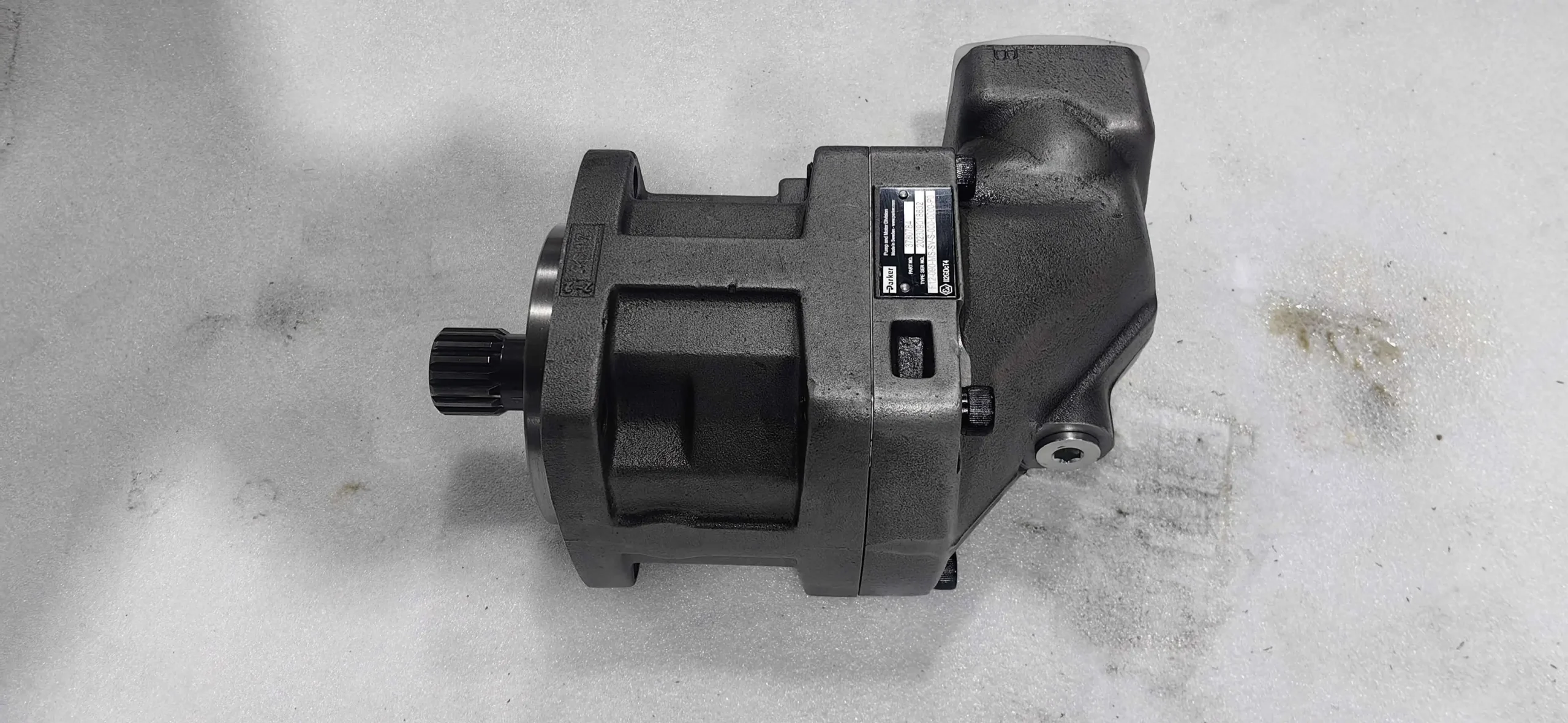

F12 Series Hydraulic Plunger Motor F12-030-SF-IS-K-000-000-B F12-110-MS-SH-T-000 F12-060-MF-CV-K
| Model Number | F12-030-SF-IS-K-000-000-B, F12-110-MS-SH-T-000, F12-060-MF-CV-K |
|---|
Product Description
F12 Series Hydraulic Motor F12-030-SF-IS-K-000-000-B F12-110-MS-SH-T-000 F12-060-MF-CV-K Plunger Motor
• F11 and F12 are bent axis, fixed displacement heavyduty motor/pump series. They can be used in numerous applications in both open and closed loop circuits.
• Series F11 is available in the following frame sizes and versions: – F11-5, -10, -14, 19 and -150 with CETOP mounting flange and shaft end – F11-14 with ISO flange and shaft – F11-14, -19, -150 and -250 with SAE flange and shaft.
• Series F12 conforms to current ISO and SAE mounting flange and shaft end configurations. A very compact cartridge version is also available.
• Thanks to the unique spherical piston design, F11/F12 motors can be used at unusually high shaft speeds. Operating pressures to 480 bar provides for the high output power capability. • The 40° angle between shaft and cylinder barrel allows for a very compact, lightweight motor/pump. • The laminated piston ring offers important advantages such as low internal leakage and thermal shock resistance.
• The pump version has highly engineered valve plates for increased selfpriming speed and low noise,
available with left and right hand rotation. • The F11/F12 motors produce very high torque at start-up as well as at low speeds.
available with left and right hand rotation. • The F11/F12 motors produce very high torque at start-up as well as at low speeds.
• Our unique timing gear design synchronizes shaft and cylinder barrel, making the F11/F12 very tolerant to high ‘G’ forces and torsional vibrations.
• Heavy duty roller bearings permit substantial external axial and radial shaft loads.
• The F11’s and F12’s have a simple and straightforward design with very few moving parts, making them very reliable motors/pumps.
• The unique piston locking, timing gear and bearing set-up as well as the limited number of parts add up to a very robust design with long service life and, above all, proven reliability.
Company Profile
HNZY Hydraulic is a professional enterprise dedicated to hydraulic equipment manufacturing and global trade, with rich industry experience and mature operation system.
We focus on the R&D, production and sales of hydraulic products, mainly supplying hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic cylinders and complete sets of hydraulic parts. Meanwhile, we provide gearboxes, bearings, lubricating oil, transmission parts, electronic components and other supporting accessories for agricultural machinery, to meet diversified customer demands.
We implement strict international quality standards and provide a full 12-month warranty covering maintenance and replacement. We have established stable cooperative relations with well-known brands at home and abroad, and continuously launch new products to keep pace with market trends. We support multiple safe and flexible payment methods, including USD settlement, Alipay, Western Union and T/T.
Relying on efficient production capacity and professional foreign trade experience, we provide competitive factory-direct prices and reliable logistics services to ensure stable and on-time delivery for global customers.
Hydraulic Application
1.Construction Machinery: Excavators, loaders, bulldozers, rollers, pavers, cranes, etc.
2.Industrial Machinery: Injection molding, die-casting, bending, shearing, metallurgy, mining, etc.
3.Agriculture & Material Handling: Tractors, forklifts, transport vehicles, etc.
4.Ship & Special Equipment: Deck machinery, winches, steering gears, etc.
